Product Introduction

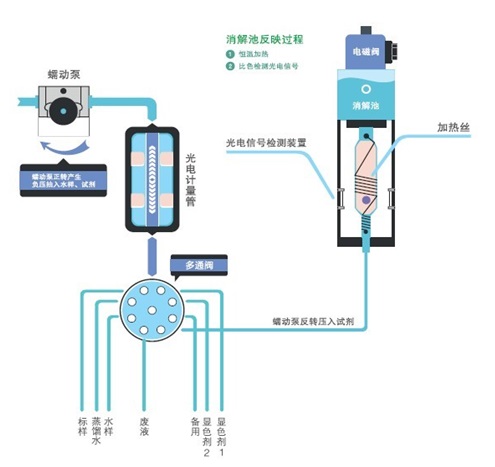

Applicable for the online monitoring of large varieties of water quality and without preprocessing the samples to be tested, YX-F water quality online automatic monitor used advanced changover valves and driving devices to simplify the process of instrument sampling and reagent adding. High accuracy of colorimetric measuring method provides the system accurate and reliable measuring result.
Working Principle
Within the acetate buffering medium of pH4.1, the fluorine ions in the sample solution react with fluoride reagent and lanthanum nitrate to generate a blue complex. And the color intensity is proportional to the fluorine ion concentration. The analyzer detects its absorbance at the wavelength of 620nm, and then getting the fluoride ion concentration in the sample solution through conversion.
.jpg)
Product Features
●Both manual and automatic calibration modes, timing calibration can be set remotely, real-time calibration;
●Automatic protection from power failure, automatic recovery when the power recovery, automatic data storing and no data loss during power failure;
●warning for exceed standard, lack of reagents and samples, liquid leakage of instruments and abnormal;
●Auto fault diagnosis, automatic protection from water break, automatic recovery when the water recovery;
●Multiple password protection to prevent misuse and improper modification of parameters, different permissions for different user password;
●Automatic protection from power failure, automatic recovery when the power recovery, automatic data storing and no data loss during power failure;
●warning for exceed standard, lack of reagents and samples, liquid leakage of instruments and abnormal;
●Auto fault diagnosis, automatic protection from water break, automatic recovery when the water recovery;
●Multiple password protection to prevent misuse and improper modification of parameters, different permissions for different user password;
