Product Overview

The YX-RTU Remote Terminal Unit is a small-scale wireless remote terminal unit which integrates collection, control and wireless transmission. It is applied to the collection, detection and monitoring of the industrial sensor network. It is suitable for the collection and transmission of hydrology, water quality, meteorological, soil moisture and so on. The monitoring parameters include rainfall, water level, gate level, flow, flow velocity, water quality, temperature, humidity, wind speed, wind direction, sunshine, evaporation, soil moisture, etc.

Product Features

●Supporting a variety of data transmission mode, including the timing to transmit the collected raw data and query response to superior system, etc;
●Supporting on-site or remote setting, it could use AT command to dynamically modify the working mode and working parameters, and also it includes site setting and data submitted frequency setting, etc;
●With a large capacity data storage, it can save up more than one year data for transmission to superior nodes;
●With flexible programmable ability, it supports remote diagnosis, maintenance and data download;
●With SMS alarm function, it could set up 6 groups of alarm number to alarm the abnormal matters on time;
●Using low power consumption monitoring technology, its unattended current is less than 2mA, and also it supports dormancy arousal working mode;
●Built-in lithium battery, it has clock protection function;
●The external interface has optical coupler and relay protection, lightning and electromagnetic protection, and strong anti-interference ability.

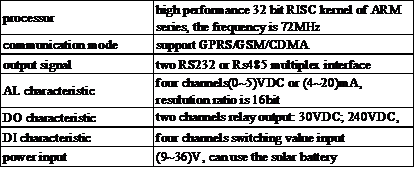

Technology Parameters
