Product Introduction

YX-USRFS liquid (matter) level meters are a new type of ultrasonic liquid (matter) level meter with automatic power adjustment, grain control and temperature compensation functions developed by the company. With an industrial SCM featuring excellent performance, high reliability and super strong operational capability as its control core, and in conjunction with advanced detecting and signal processing technology, the product can guarantee fine working performance in complicated environmental conditions.

Working Principle

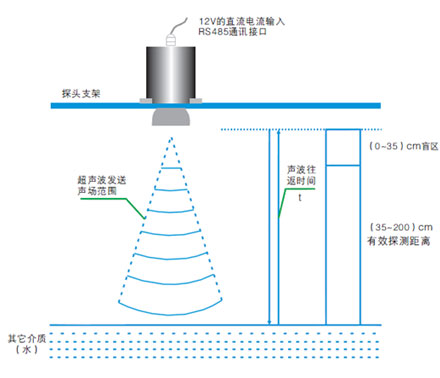

As shown in the figures, the probe emits ultrasonic waves outwards. By means of the directivity and reflectivity of the ultrasonic wave, the sensor can receive the waves from reflecting surfaces and calculate the round trip time t of the wave, in this way obtaining the vertical distance from the probe plane to the reflecting surface (obstacle).

Product features

●Adopts advanced SMD technology product, low costs and excellent performance;
●Takes a high performance industrial SCM as the main control chip;
●High operational commands of up to millions of instructions per second, sampling frequency high up to over 10 times per second;
●Advanced detecting technology, rich software functions to adapt to various complicated environments;
●Adopts new-type wave form calculation technology, and gets improved instrument measurement accuracy;
●Has a return wave disturbance restraint function, and grantees the authenticity of data;
●Realize (4-20) mA current signal and relay output together with the main unit, multiple optional functions available;
●Products covering multiple ranges available to meet different using demands.
