System Overviw

Tap Water Pipe Network’s Monitoring System is a set of comprehensive monitoring management system, which takes the online analyzer as the core, and it adopts modern sensor technology for rapid collection, storage, processing, inquiry, reporting and early warning of water quality, pressure, flowand other monitoring information in tap water pipe network via special analysis software.

System Composition

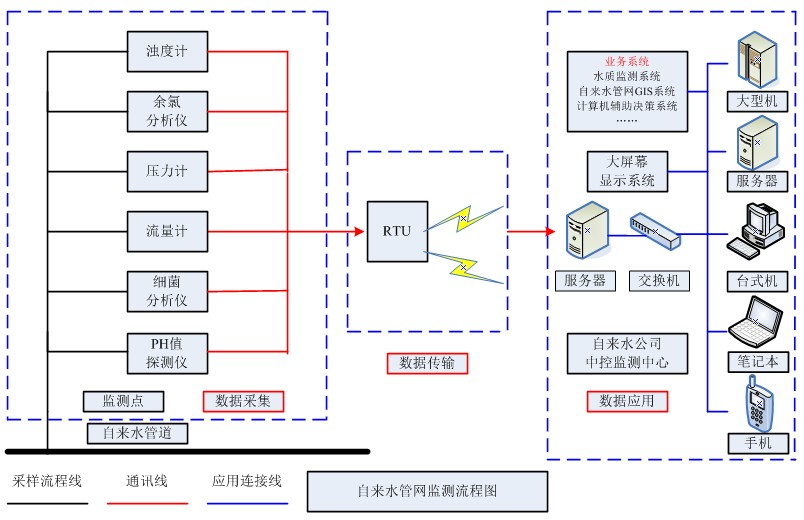

The system is composed of three parts: online monitoring analyzer, network transmission module and monitoring management system. The online monitoring analyzer monitors the monitoring site’s water quality of the turbidity, residual chlorine, PH value, bacteria number and other factors, and also it can real-time monitor the tap network’s pressure and flow status. The RTU communication module is responsible for transmitting the monitored data to the monitoring management system via wired phone dialing or GSM, etc. The monitoring management system is for data collection, storage, inquiry, statistics and early warning, and the system can customize special functional modules according to users demand, then it integrates the modules in the system to meet different needs of the users.

System Features

With advanced domestic and foreign technologies, the system has multiple patents;

The system has good stability, low operating cost and high price performance ratio;

Modularized integration, simple installation and convenient maintenance;

Unattended on-site, automatic running, it has exceed standard automatic alarm function, and it supports SMS alarm and other modes;

Suitable for multiple communication (data transmission) modes, compatible with various communication protocols;

Power-off protection, automatic restoration after re-power, the historical data won’t lose;

Favorable secondary development capability of monitoring system, and can be added individual special functions as demand.
