Product Introduction

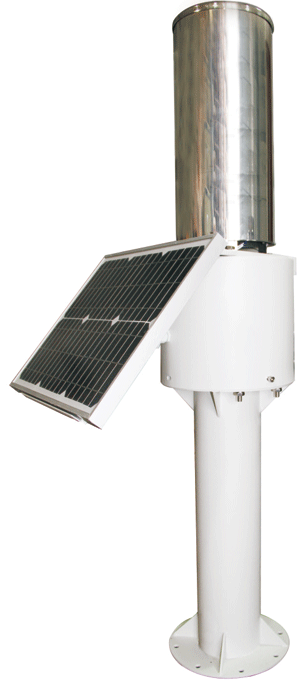

The YX-TBRS integral rainfall monitoring station, which has functions such as intelligent collection of rainfall data, long-term solid storage and remote transmission, is used for the automatic monitoring of rainfall in the field environment. It is widely used for the construction of high-density hydrology and flood prevention information station in the severe field environment.

Working Principle

The rain water enters into the receiver through its inlet at the top, falls into the water receiving funnel and flows into the metering bucket through the funnel inlet. When the quantity of water accumulated reaches a certain height, the tipping bucket will lose its balance and tip over. Each tip-over will drive the reed switch to close the circuit to transfer a pulse signal to the RTU remote terminal unit. The RTU unit records the tip-over time by counting, gets the real-time rainfall through data processing, and sends the monitoring data to the monitoring center through GPRS or RS232 interface.

Product Features

●Integrated structure, small volume, convenient installation;
●Integrated data acquisition, processing terminal ( YX-RTU ) and communication module;
●Solar lead-acid battery to satisfy the needs of field work;
●The low power consumption power supply monitoring technology, supporting sleep mode;
●Support for GPRS or CDMA mode;
●Data storage function, can be performed in real time, and inquired historical data;
●Lightning protection, electromagnetic protection.
